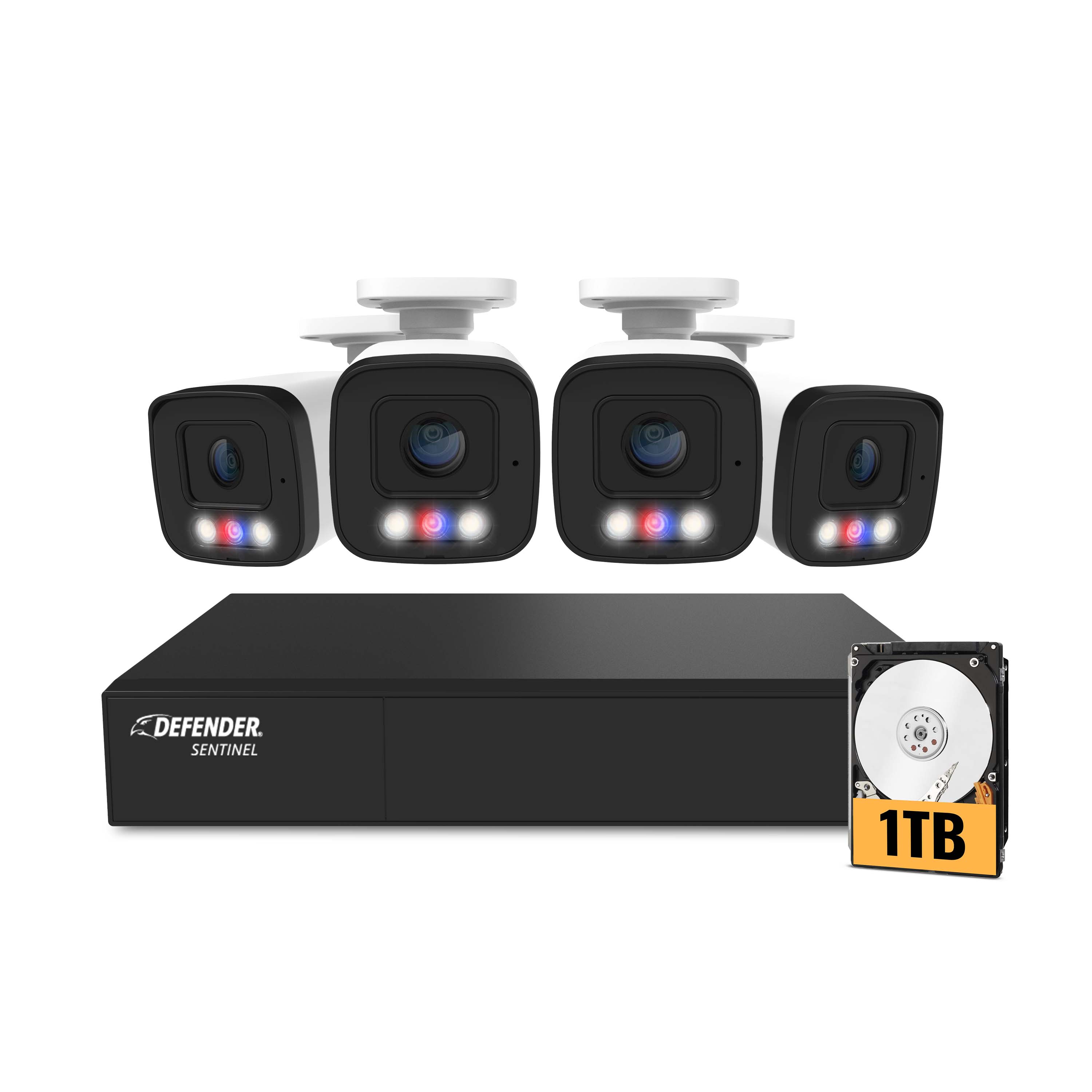

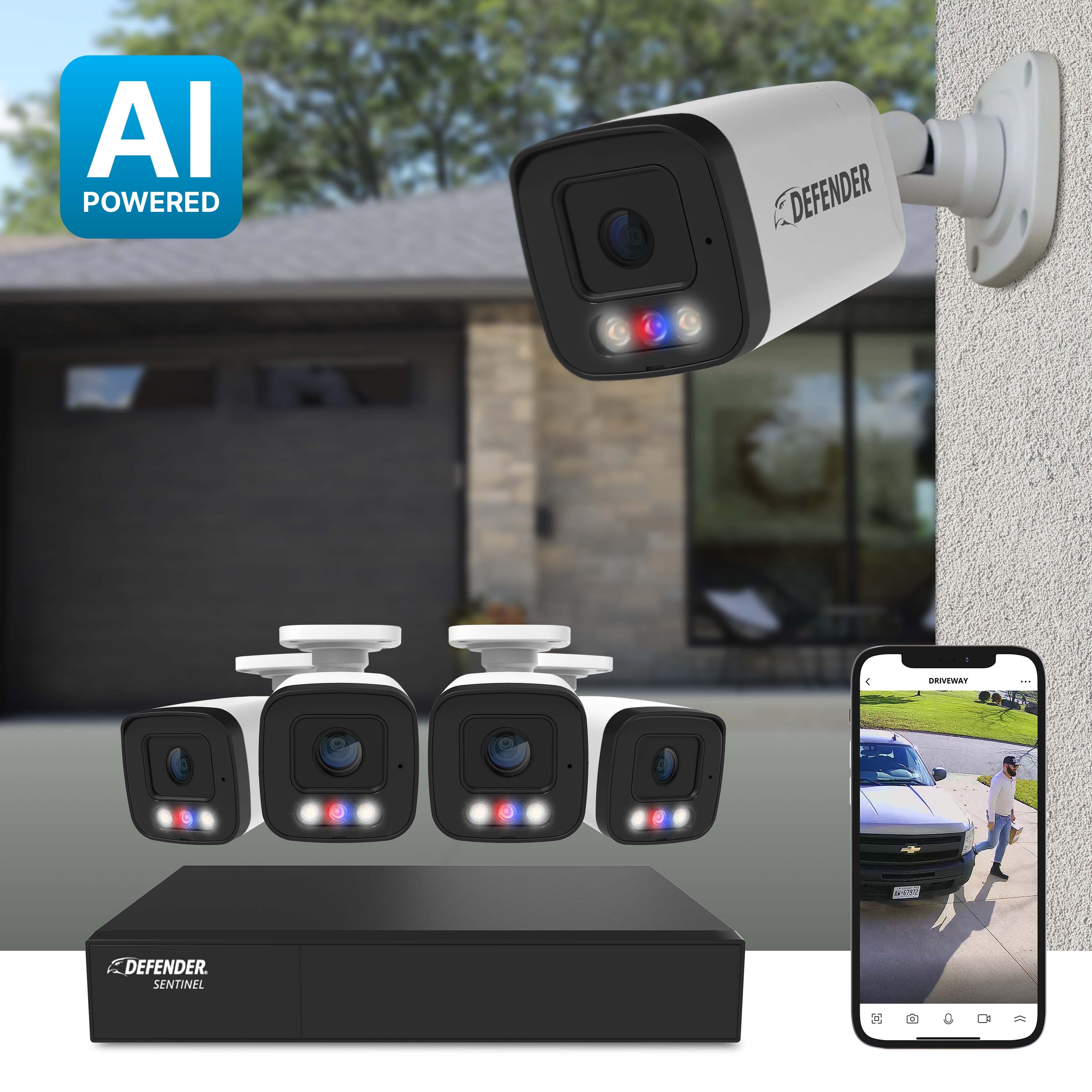

AI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 4 Metal Cameras & 1TB HDD

AI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 4 Metal Cameras & 1TB HDD
$429
$659 $429
Shipping calculated at checkout.

Cameras

AI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 4 Metal Cameras & 1TB HDD

$429

AI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 6 Metal Cameras & 1TB HDD

$499

AI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 8 Metal Cameras & 1TB HDD

$579

AI POWERED Sentinel 4K Ultra HD Wired 16 Channel PoE NVR Security System, 16 Metal Cameras, 2TB HDD

$1,079

Hard Drive

1TB
4/8 Days
INCLUDED

AI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 4 Metal Cameras & 2TB HDD

9/17 Days
17/35 Days
35/52 Days
52/105 Days

$129

AI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 4 Metal Cameras & 4TB HDD

9/17 Days
17/35 Days
35/52 Days
52/105 Days

$169

AI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 4 Metal Cameras & 6TB HDD

9/17 Days
17/35 Days
35/52 Days
52/105 Days

$299

*Based on Continuous 4K Recording Stored to Your NVR

Warranty

1 YEAR INCLUDED

2 year
3 year

$59

2 year
3 year

$76
$429
$659 $429
Defender EXCLUSIVE BUNDLE: AI POWERED Sentinel 4K PoE NVR Wired Security System, 2TB HDD & 16 Metal Cameras
EXCLUSIVE BUNDLE: AI POWERED Sentinel 4K PoE NVR Wired Security System, 2TB HDD & 16 Metal Cameras
AI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 6 Metal Cameras & 1TB HDD
DefenderAI POWERED Sentinel 4K Ultra HD Wired 8 Channel PoE NVR Security System, 6 Metal Cameras & 1TB HDD

  • SMART AI Human Detection

  • Powerful Criminal Deterrence

  • Breathtaking 4K ClearVu™

  • Vibrant Color Night Vision

  • AI SMART Encoding

  • Sharp Audio Recording

BREATHTAKING 4K CLEARVU™

View faces & license plates with brilliant 4K Ultra HD quality.

1080P 4K ULTRA HD

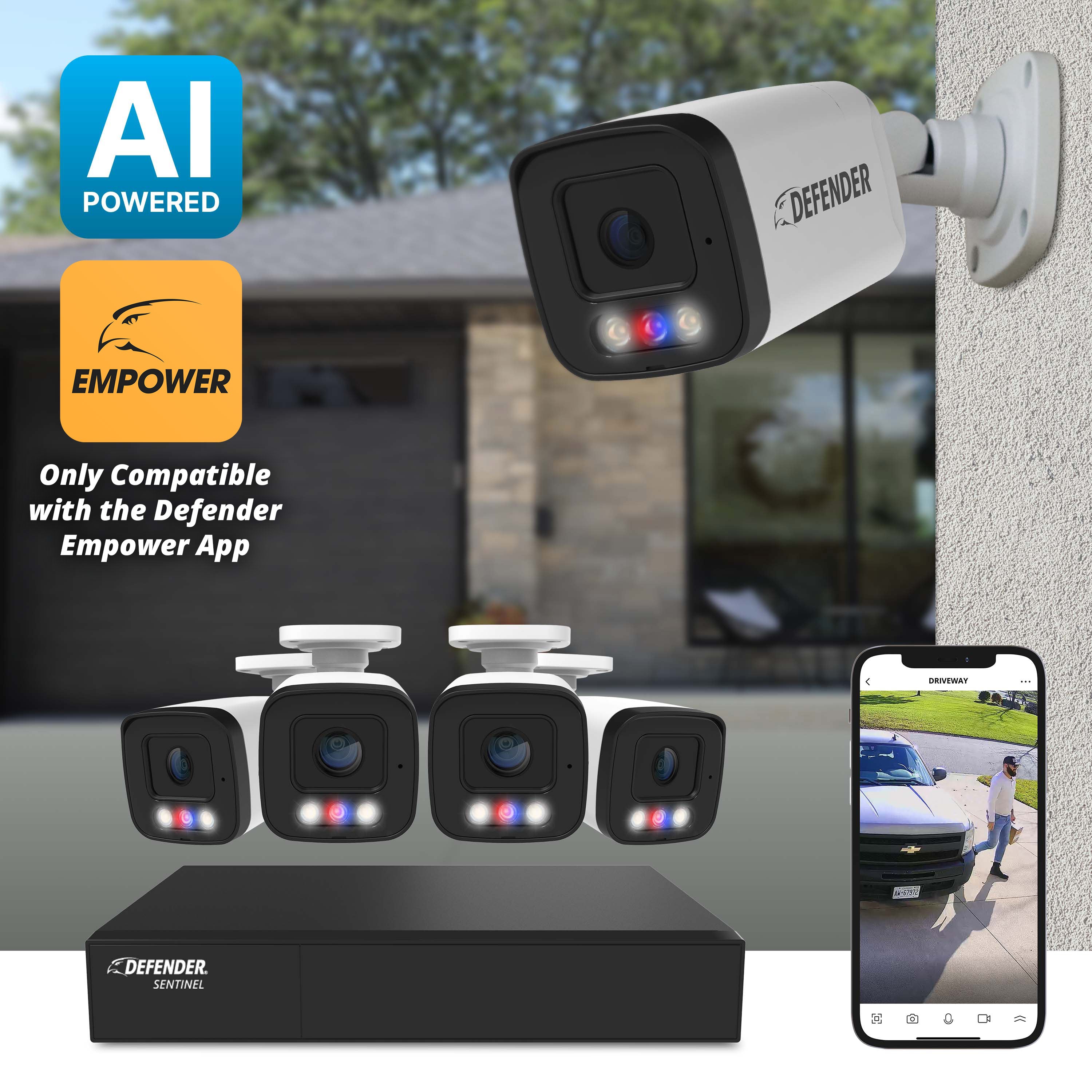

Premium EMPOWER App

YOUR SECURITY COCKPIT

Security at your fingertips. View directly from the top-rated mobile app and take control from anywhere, any time.

TECHNICAL

SPECIFICATIONS

Model number

NS8B4A-1T

Technical specs

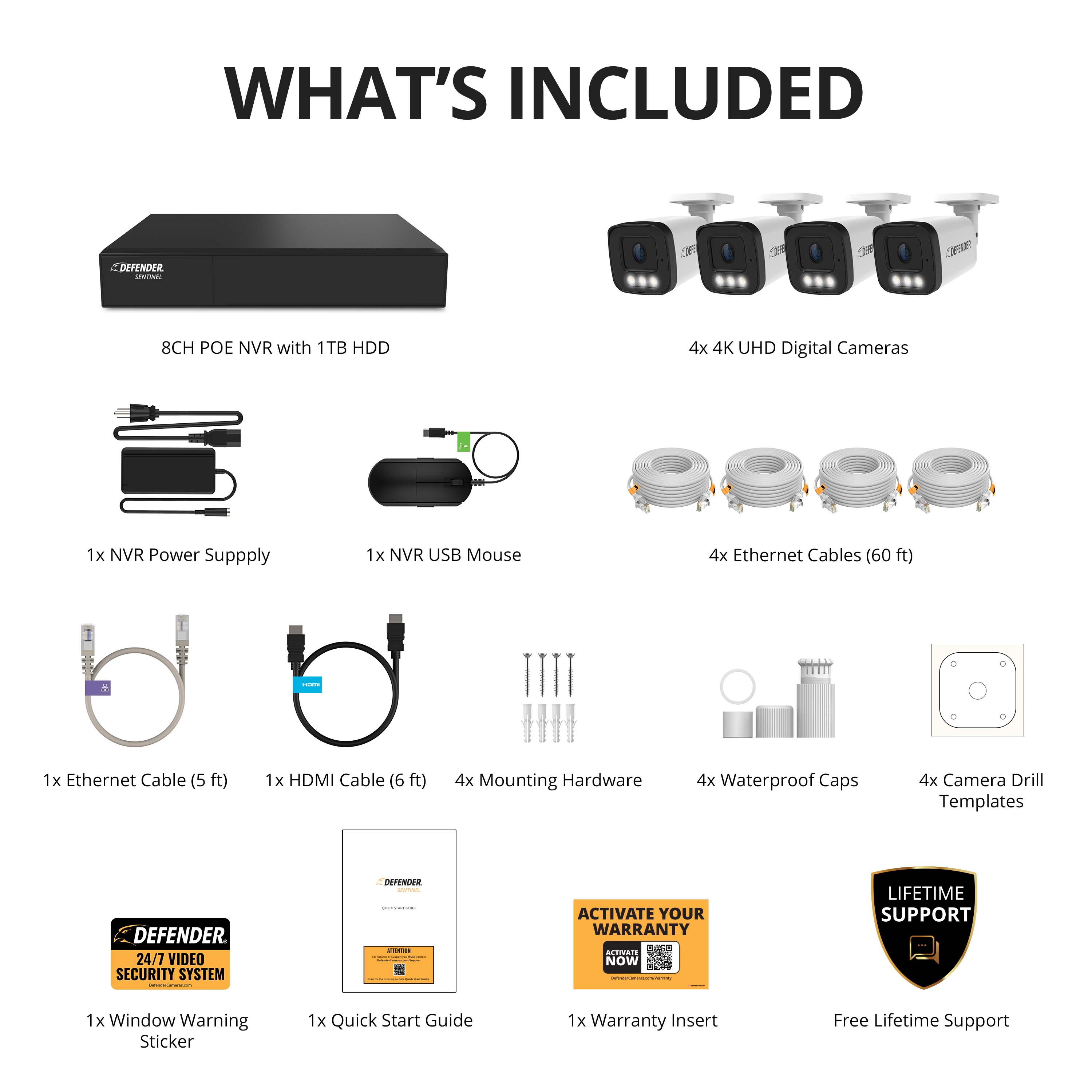

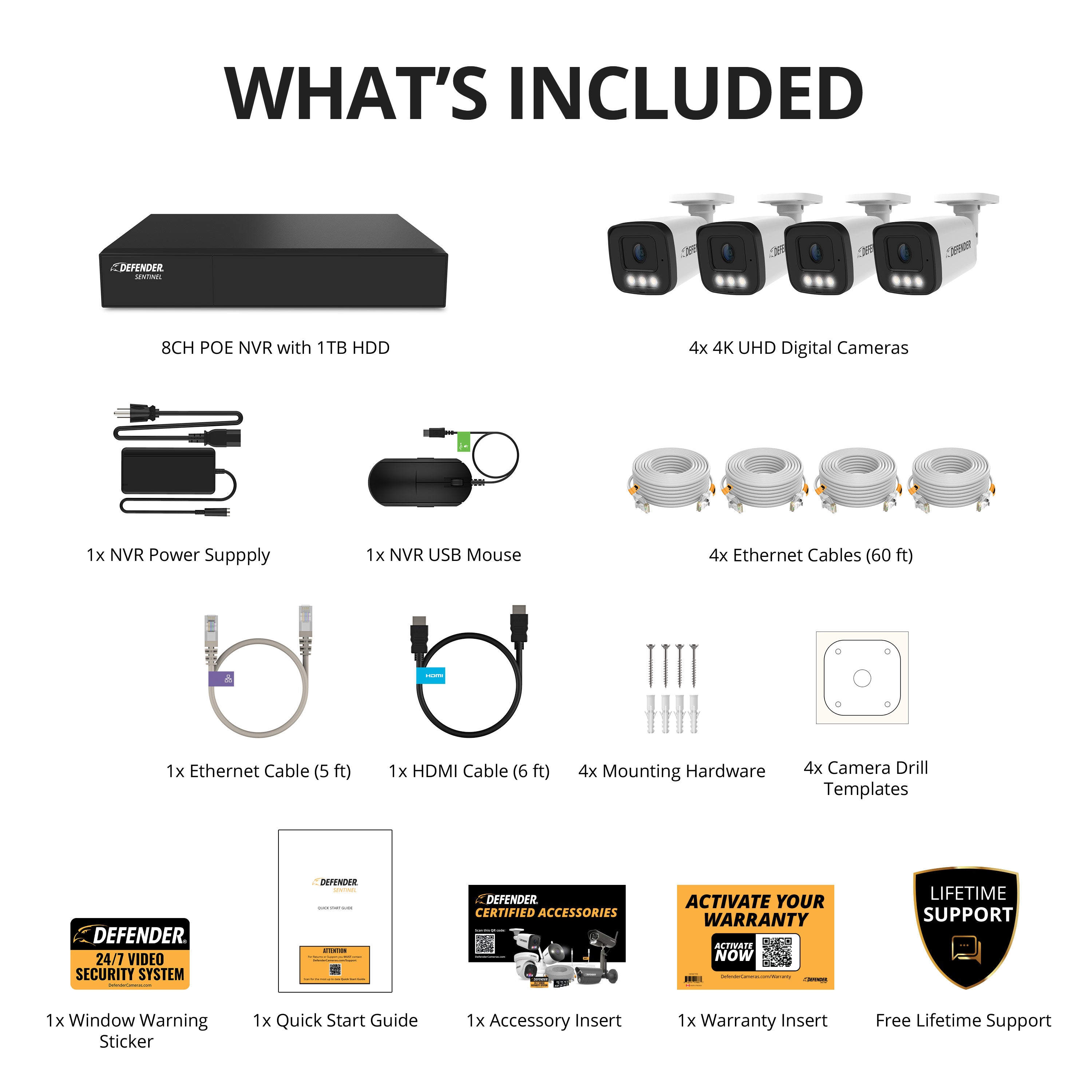

  • What's Included

    4x SMART AI 4K PoE IP Cameras

    1x 8ch NVR with 1TB HDD

    4x 60ft Ethernet Cable

    1x HDMI Cable

    1x 6.5ft Ethernet Cable

    1x NVR Power Supply

    1x USB Mouse

    4x Camera Mounting Hardware

    4x RJ45 Waterproof Cap

    4x Drilling Template

    1x Quick Start Guide

    1x Window Warning Sticker

    1x Warranty Registration Insert

    1 Year Warranty

    Lifetime Support

  • Video and Audio

    NVR

    Number of Channels: 8

    Video Output:

    1 channel VGA: 1920 × 1080, 1280 × 1024, 1024 × 768

    1 channel HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768

    Synchronous Playback: 1/4/8 Channels

    Stream Type: Audio and Video Streaming, Video Only Streaming

    Decoding Capacity: 1ch 8MP, 4ch 1920 × 1080, 8ch 704x480

    CAMERA

    Image Sensor: 1/2.7” CMOS Sensor

    Effective Pixels: 8MP (3840x2160)

    Video Frame Rate: Max 25FPS

    Lens: Focal Length = 2.8mm Fixed; F=2.0

    Min. Illumination: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

    IR Cut Filter: Auto-Switching

    IR LED Quantity: N pcs

    White Spotlight: N pcs, X Lumens, Color temperature in Kalvin

    Red-light Alarm: 2pcs Blue-Red LEDs

    Field of View (FOV): 125° (D) / 109° (H) / 61° (V)

    Night Vision Range:

    IR Mode: 98.5ft (30m)

    Color Mode: 65.5ft (20m)

    Video Compression: H.265/H.264

    Video Bit Rate:

    Main Stream: 500kbps – 6144Mbps (Default 4096Kbps)

    Sub Stream: 100kbps – 1024bps (Default 1024kbps)

  • Recording

    Recording Resolution: 3840x2160, 3072 x 2048, 2560 x 1920, 2560x1440, 2048 x 1536, 1920x1080, 1280x720, 704x480

    Recording Mode: Motion Recording, Continuous Recording, Manual Recording

    Frame Rate: Max 25FPS

    Recording Time:

    3840 × 2160 Resolution (Up to 15 FPS, 4096kbps)

    1TB (1-8 cameras) = 529 Hours (Average Recording Time)

    704x480 Resolution (Up to 25 FPS, 2048kbps)

    1TB (1-8 cameras) = 2119 Hours (Average Recording Time)

  • Network

    Network Interface: 1x RJ45 10/100Mbps Self-Adaptive Ethernet Port

    Network Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE

    Mobile Access: Defender Empower App

    Remote Users: 10 Shared App Accounts

    Supported Standards: IEEE 802.3af

    Max POE Power: 8W Per Port, 64W Total

  • HDD

    HDD Capacity: 2TB Included, Max 8TB allowed

    HDD Interface: 1x SATA

  • NVR Interface

    USB Interface: 2x USB2.0

    Audio In/Out: 1ch 3.5mm Jack

    Alarm: Built-in Buzzer Alarm

  • General

    NVR

    Power Supply: DC48V/2A

    CAMERA

    POE Interface: 1 Ethernet (10/100 Base-T) RJ-45 Connector

    DC Power Port: DC12V

    Power Consumption: 1.5W (IR OFF), Max 6.5W (IR + Light active deterrence)

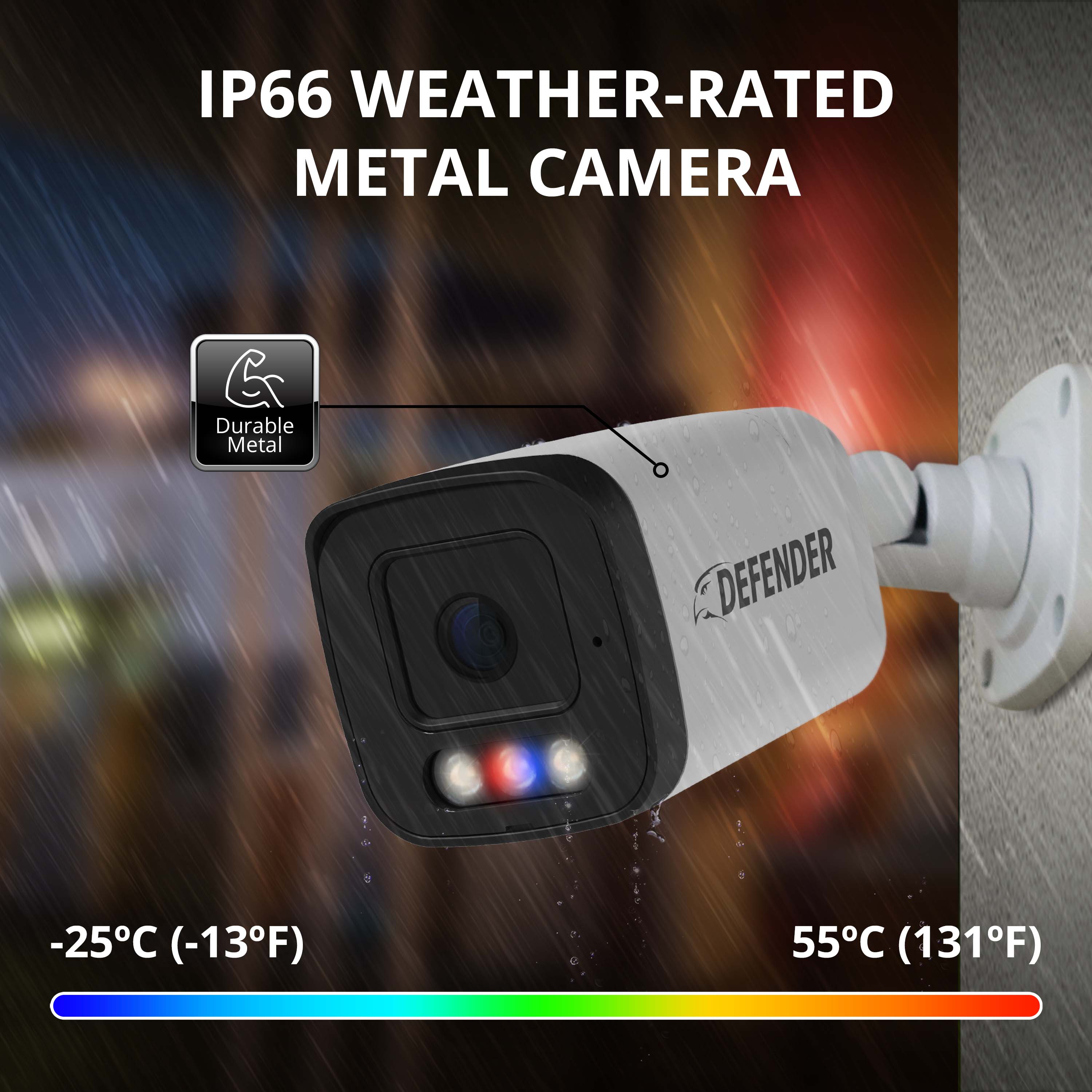

    Housing: Metal

    Weatherproof Rating: IP66

  • Working Temperature

    NVR: 14°F – 122°F (-10°C – 50°C)

    Camera: -13°F to 131°F (-25°C to 55°C)

  • Dimensions (LxWxH)

    NVR: 10.02 × 8.83 × 1.73 inch (254.5 × 224.4 × 43.9 mm)

    Camera: 7.05 × 2.69 × 2.69 inch (179.1 × 68.36 × 68.36 mm)

  • Weight

    NVR: 1.59 lbs (0.72 kg) without HDD

    Camera: 0.93 lb (0.42 kg)

  • Resources

    Defender AI POWERED Sentinel 4K - Quick Start Guide

  • Country of Origin

    China

Frequently Asked Questions

DOES DEFENDER PROVIDE FREE SHIPPING?

We are proud to offer free ground shipping to our customers across the 10 Canadian provinces with no minimum purchase required. Free shipping is not available for the Canadian Territories and select areas considered remote by our shipping partners. Shipping fees will be calculated at the Checkout. Estimated delivery is 3-7 business days.

WHAT IS THE RETURN POLICY?

Not what you were expecting? Our no-questions-asked return policy makes it easy for you request a return within 30-days of placing your order. Please Note: Original shipping charges will not be refunded and return shipping costs are the responsibility of the customer.

WHAT IS DEFENDER'S PRICE MATCH GUARANTEE?

See a lower price on this item from an authorized retailer? Contact our Support Team here or chat live Monday to Friday from 8am-4pm EST with a link and screenshot to the advertised price and we will match it! Conditions apply. Learn more here.

ARE THESE 4K SECURITY SYSTEMS WIRELESS?

No. As most of our 4K security systems have more than 4 cameras, if they were to be wireless there would likely be interference and lag issues. To ensure an interference free experience and give you the option not to use W-Fi, our 4K Security Systems are a wired connection between the cameras and DVR.

WHAT IS THE DIFFERENCE BETWEEN 4K (8 MEGAPIXEL) AND 2K (4 MEGAPIXEL)?

8 megapixel, also referred to as 4K resolution, is double the clarity of a 4 megapixel (2K resolution) security camera! By investing in 4K resolution, the amount of pixels in your image is doubled, which gives you superior detail and allows for a higher quality, undistorted zoom.

CAN I ALLOW OTHER PEOPLE TO VIEW MY NVR REMOTELY?

Yes. You can share your Defender Empower App access with up to 20 additional users. Each user must download the Defender Empowerment App and create their own account before sharing access.

CAN I VIEW MY LIVE OR RECORDED FOOTAGE FROM A WEB BROWSER?

No. We do not offer web viewing. You can view the footage from the free Defender Empower App with compatible iOS/Android smart phones/tablets, and through a TV or monitor connected to the NVR.

CAN I EXTEND MY CAMERA’S ETHERNET CABLE?

Yes. You can extend each camera to a maximum of 180 feet. We recommend using Defender’s certified authentic and genuine Ethernet cable when doing so.
